Superflex Battery Flexible Welding Cable Heavy Duty 25mm2 Rubber Insulation

Name: Superflex Battery Flexible Welding Cable Heavy Duty 25mm2 Rubber Insulation
Brand: JHY CABLE
Price: 1 USD

Buy cheap Superflex Battery Flexible Welding Cable Heavy Duty 25mm2 Rubber Insulation product

Brand Name : JHY CABLE

Model Number : YHV

Certification : ISO9001/ISO14001/OHSAS18001/CCC/CE

Place of Origin : SHENZHEN CHINA

MOQ : 500M

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000M/Day

Delivery Time : 7 Days

Packaging Details : As per customer request

Application : Welding Machines

Type : Welding cable

Conductor : Bare Copper

Insulation : Rubber

Color : Black

Working temperature : 70°c

Contact Now

Heavy duty Flexible Cable Battery Cable 25mm2 superflex welding cable

Applications

Secondary voltage resistance welding cable leads
Temporary power uses
National Electrical Code article 630 electric welders
Power supply applications not exceeding 600 volts AC.

Features

bare copper manufactured in-house for superior flexibility
Special stranding and packaging are available upon request
Oil resistant
Resistant to flame
Custom print available upon request
Halogen Free, all colors except green

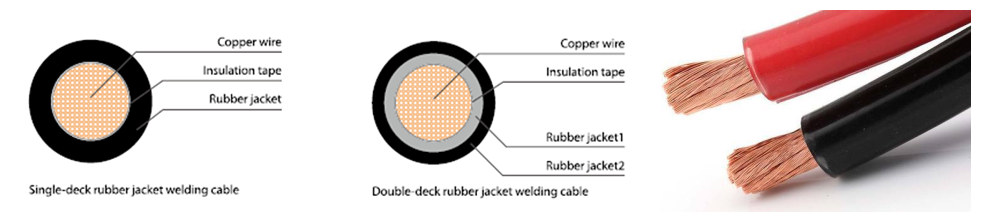

Welding cable model:

YH - natural rubber sheath electric welding machine cable

YHF - chloride butyl or other equivalent synthetic elastomer rubber sheathed welding cable

Specification, size, weight, and technical parameters:

Core number × Nominal cross section	Conductor	Nominal thickness of insulation (mm)	Upper limit of the average diameter		20℃ Conductor resistance≤(Ω/km)	Weight (Kg/km)
Core number × Nominal cross section	Piece / Single nominal diameter	Nominal thickness of insulation (mm)	lower limit	up limit	20℃ Conductor resistance≤(Ω/km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.19	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.780	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.552	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.390	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.276	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.204	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.154	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.126	1678.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.100	1983.8	2020.74

Construction

Conductor material: Bare Copper
Gauge: 2/0 – 2
Insulation material: EPDM
Operating Temperature: -50°C to 105°C
Meets Requirements: UL VW-1 flame test outlined in UL1581; SAE J1127 Stranding

	1. Conductor material:	Copper Core
	2. Insulation Material	Rubber
	3.Color	Black
	4.Rated voltage	450/750V and below
	5.Working temperature	<70°c

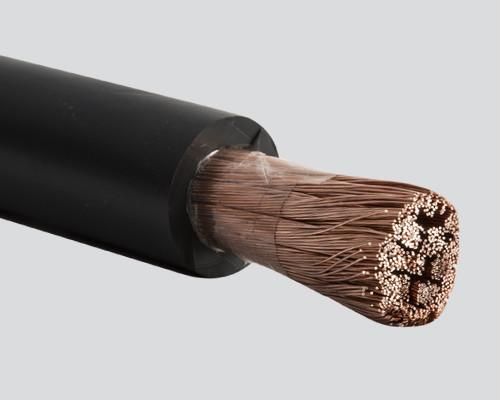

2. Product Image
Superflex Battery Flexible Welding Cable Heavy Duty 25mm2 Rubber Insulation

OUR ADVANTAGES

Shenzhen Jinhuanyu Wire and Cable Co., Ltd.
Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc

Company established time: Since 1993
26 years of cable manufacturing and sales experience
Annual sales of about 600 million US dollar
150,000 m2 Production area
Over 1000 Will-trained employees
4 industrial parks
Over 30 professional engineers R&D team

Head office: No.12-16 Building, Tantou West Industry, Songgang Street, Baoan District, Shenzhen China 518106
