Copper Conductor House Wiring Electrical Cable 1.5mm-6mm2 H07V-R Electric Wire
Production Description:
1. Cable Structure of H07V-R cable
- Conductor: bare copper conductors
- Insulation: PVC insulation
- Finished cable: core wire laminated twisted synthetic cable.
2. Techinical Paremeters of H07V-R cable
Rated voltage: 450V/750V
Minimum bending radius:
A. Fixed laying: 12.5 x D (outside diameter of cable)
B. Mobile installation: 12.5 x D (outside diameter of cable)
Operating temperature:
A. Fixed laying: -30 to +80℃
B. Mobile installation: -5 to +70℃ .
3. Detailed Specifications of H07V-R cable
| Nominal cross-section (mm2) | Wire core Number/ Monofilament Diameter (mm) | Insulation Nominal Thickness (mm) | Cable Outer Diameter ≦ (mm) |
| 1.5 | 1/1.38 | 0.7 | 3.3 |
| 1.5 | 7/0.52 | 0.7 | 3.5 |
| 2.5 | 1/1.78 | 0.8 | 3.9 |
| 4 | 1/2.25 | 0.8 | 4.4 |
| 6 | 1/2.76 | 0.8 | 4.9 |
| 10 | 7/1.35 | 1.0 | 7.0 |
| 16 | 7/1.70 | 1.0 | 8.0 |
| 25 | 7/2.14 | 1.2 | 10.0 |
4. Application
It is used for soft connections in electrical appliances, instruments, and electrical devices. Connect the removable assembly line and connect to a device with round-trip bending motion,can be used as communication equipment and electronic transmission equipment, such as electrical control cabinets, distribution boxes, telephone exchanges and other occasions.

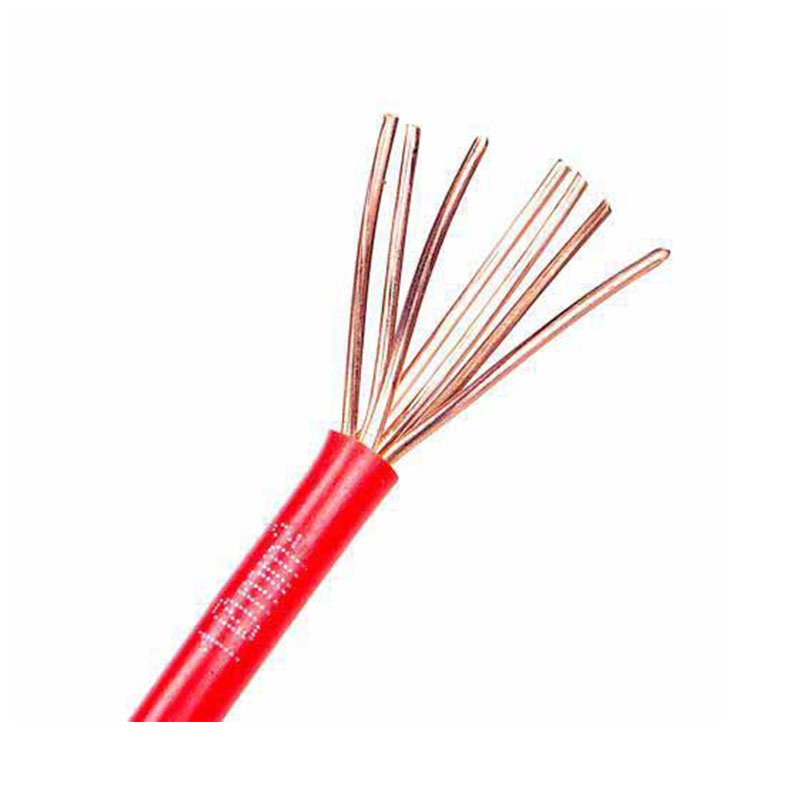

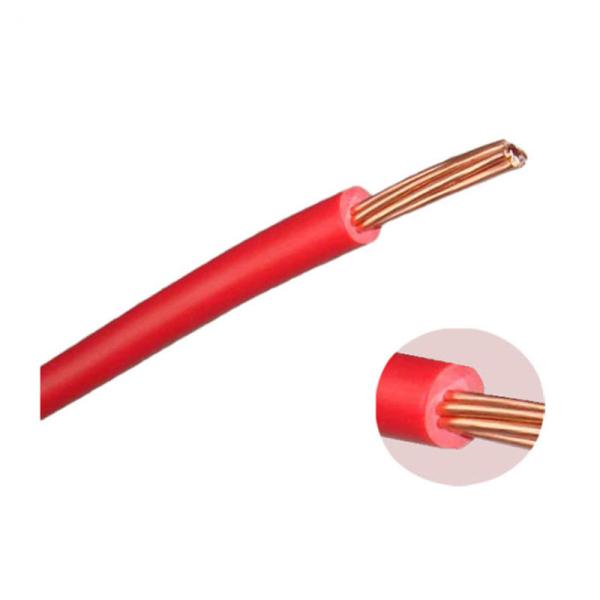

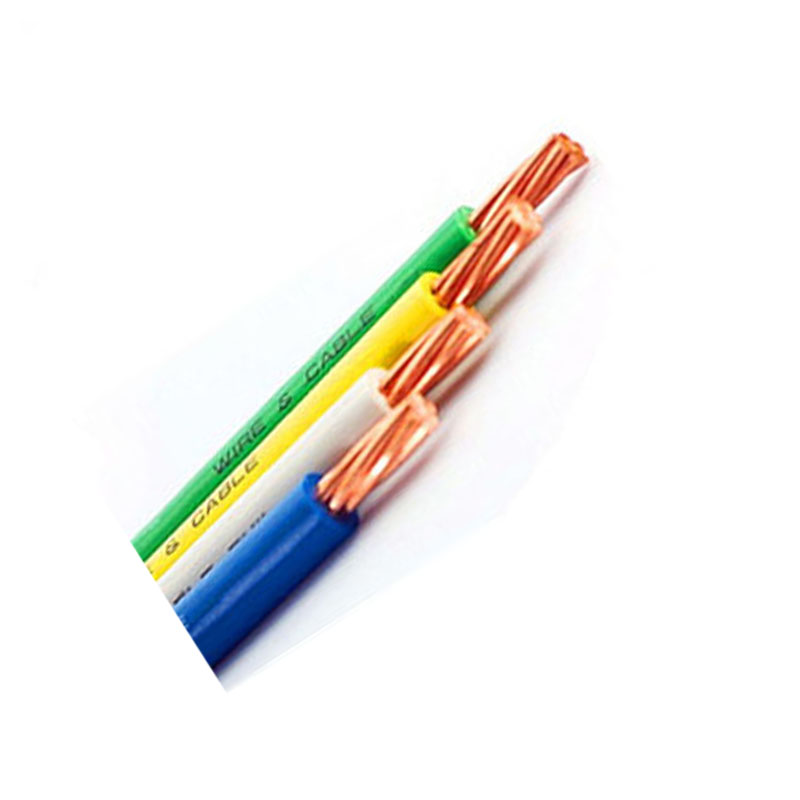

5. Product Image
Product Advantage
Product Package
6. Product standard
GB/T 5023, IEC 60227,TIS 11 part 3-2553
7. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
